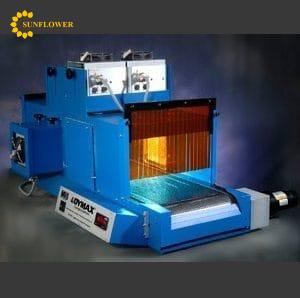

Dymax Curing Conveyor UVCS SideCure UV

Dymax UVCS SideCure UV curing conveyors configured with UV curing lamps on the left, right, and/or top offer consistent, fast, and safe UV curing from both the top and/or the sides. These conveyors are designed for 180° curing of UV curable adhesives, UV curable coatings, and UV curable inks. These conveyors can be outfitted with either standard metal halide (longwave), mercury (shortwave), or visible bulbs.
FEATURES
Consistent UV curing on the left, right, and/or top – allows for 180° UV curing
Optical encoder-controlled speed indicator provides for accurate and consistent exposure time
Can be configured to house 1 to 8 UV curing lamps – versatile and scalable
Configured with high-intensity 5000-EC lamps which provide 225 mW/cm2 for fast UV curing
Adjustable side lamps (3″ to 6″ from belt center)
12″ belt and 7.5″ vertical clearance allows for curing of large parts
Small, four-foot-long, bench-top size minimizes the footprint required for UV curing
Integral cooling and vacuum hold-down
1 to 27 fpm
Complete UV shielding
Bench-top conveyor (cart optional)
