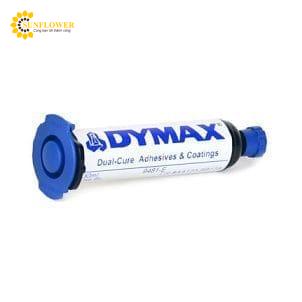

Dual-Cure 9481-E

Dymax Dual-Cure 9481-E is a light- and moisture-cure conformal coating specifically formulated to ensure complete cure for coating that flows underneath components on printed circuit boards. Coating in shadowed areas cures over time with ambient moisture. This coating fluoresces a vivid blue when exposed to UV light (365 nm) for easy inspection of coating coverage. Dymax 9481-E is engineered for coating thicknesses up to 0.127 mm [0.005 in]. Dymax Dual-Cure materials contain no nonreactive solvents. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax light-curing spot lamps, focused-beam lamps, or flood lamps, they deliver optimum speed and performance for conformal coating. Dymax lamps offer the ideal balance of UV and visible light for the fastest, deepest cures. This product is in full compliance with the RoHS2 directives 2015/863/EU and 2011/65/EU.
Features:
UV/Visible Light Cure
Bright Blue Fluorescing
Secondary Moisture Cure
Chemically Resistant
Solvent Free
MIL-I-46058C
Very Low VOCs
IPC-CC-830B
Low Odor
UL 94 V-0
One Part, No Mixing Required
UL 746-E
