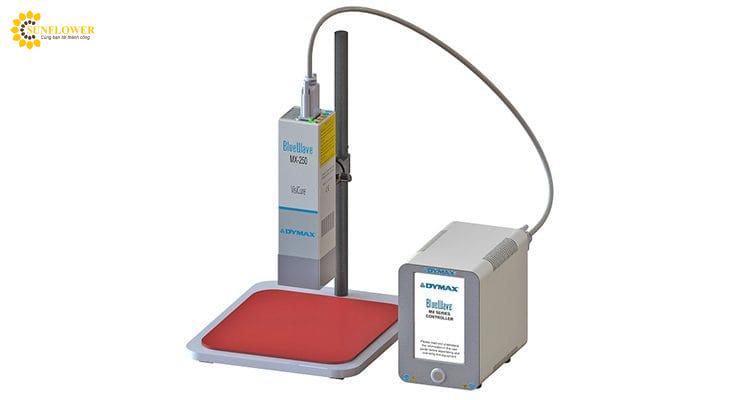

Dymax BlueWave MX-250 LED Flood-Curing System

Dymax’s next-generation curing system, the BlueWave
®
MX-250, provides manufacturers with the curing flexibility of past systems but with new expansion capabilities. The unit is comprised of two main parts, a controller with an easy-to-use touchscreen interface and a uniquely designed, high-intensity LED emitter. The LED emitter provides better uniformity and more consistent curing-energy emissions than traditional flood-curing systems over a 50 mm x 50 mm curing area. Curing energy is created using a micro-processor-controlled LED chip set in the emitter. Multiple systems can be grouped together to create larger curing pattern matrixes as needed.
With this new design, the system can be truly tailored to users’ curing needs – allowing them to choose from three different wavelength LED emitters (365, 385, or 405 nm) and providing additional flexibility with the size and pattern of the active curing area. Users also have endless set up flexibility, as this system can be set up as a bench-top unit, or for automated curing processes, the emitter can be easily mounted to robotic arms or further from the controller without fear of intensity losses.
FEATURES:
High intensity
Very high uniformity across entire cure area over a wide range of working distances
LED emitters available in 365, 385, or 405 nm wavelengths
Admin and production modes
Touch screen with full keyboard
MX Series controllers can be utilized to power both MX-250 and MX-150 emitters
Instant on-off
Efficient LED temperature management and system monitoring
Remote I/O interface
