Stainless Pressure Tank

For the applications where large amounts of material are being dispensed, we offer a variable size of pressure tank assembly as a material reservoir. Besides, fluid tanks also help to maintain steady fluid pressure, prevent fluid contamination and evaporation, and contain fumes.
FEATURES:
Tanks are made from stainless steel and suitable for use with most lubricants, fluxes, and solvents without wearing out problems
Available with high pressure 0~10 kg/cm², low pressure 0~4 kg/cm², and precision 0~2 kg/cm² constant-bleed air regulators to handle different fluid viscosities.
Available with variable size: 1L, 3L, 5L, 10L, and 20L
APPLICATION:
Low Viscosity Material dispensing system
Dispensing large amounts of material or large packaging size

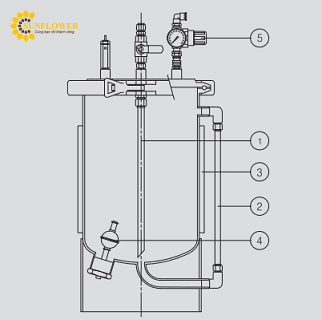

COMPONENTS:
1. Top port
2. Level gauge
3. Heater
4. Level sensor
5. Regulator set
