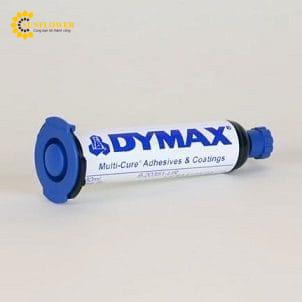

Multi-Cure 9-20557

Dymax Multi-Cure 9-20557 cures upon exposure to light and is designed for rapid conformal coating of printed circuit boards and other electronic assemblies. This coating has been optimized for coating thicknesses between 51 mic [0.002 in] and 510 mic [0.020 in]. The low modulus of 9-20557 allows it to excel in coating applications where thermal shock performance is critical. Dymax 9-20557 is a Multi-Cure material specially formulated to cure with heat in applications where shadowed areas exist. Dymax Multi-Cure materials contain no nonreactive solvents and cure upon exposure to light. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax light-curing spot lamps, focused-beam lamps, or flood lamps, they deliver optimum speed and performance for conformal coating. Dymax lamps offer the ideal balance of UV and visible light for the fastest, deepest cures. This product is in full compliance with the RoHS2 directives 2015/863/EU and 2011/65/EU.
Features:
UV/Visible Light Cure
MIL-I-46058C Listed
Secondary Heat Cure
IPC-CC-830-B Approved
Low VOCs
UL Flammability Recognized
Medium Viscosity, Designed to Enhance Wetting of Leads
UL 746 Recognized
Blue Fluorescing
Suitable for Most Types of Spray Equipment
Isocyanate Free
One Part, No Mixing Required
