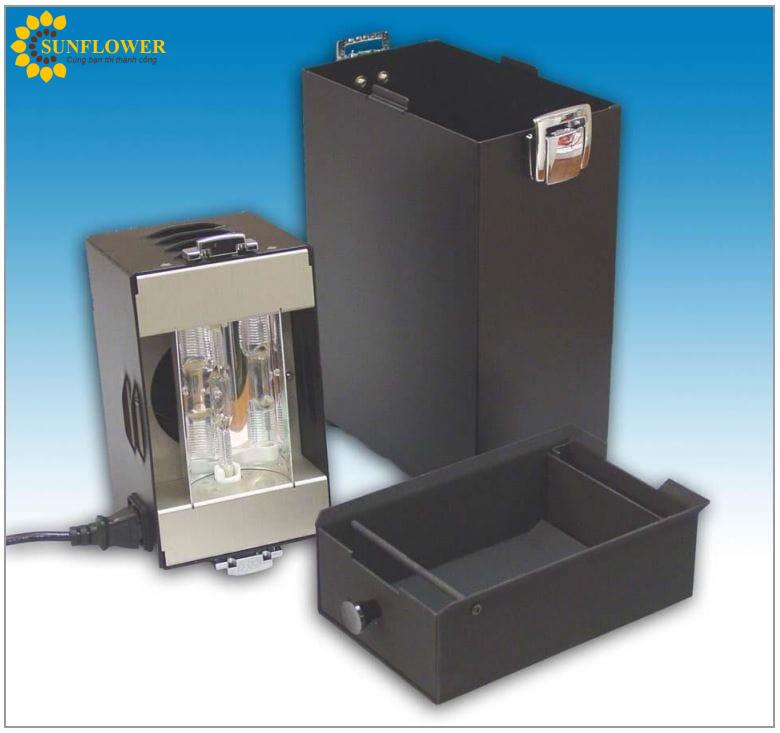

Dymax 39640 Porta Ray 400 With Metal Halide Lamp (230V)

The PORTA-RAY 400R light-curing system may be placed on any bench or shelf that has access to an 115 VAC 50/60-cycle single-phase power source in a clean operation area, lp to optimize the speed of automated assembly, allow for 100% in-line inspection, and increase throughput. System designs enable stand-alone configuration or integration into your existing assembly line
SYSTEM COMPONENTS
Mounting Holes (A)
– Two threaded holes that can be used for fastening the Lamp Head to a fixture, machine, or conveyor.
Input Power Switch & Receptacle (B)
– Input Power Switch used to apply or remove main power to the PORTA-RAY 400R system. Co-located with the Input Power Switch is the IEC-type Receptacle where the Input Line Cord is inserted.
Handle (C)
– The PORTA-RAY 400R Handle can be used to carry the curing system when the Lamp Head is latched to the bottom Accessory Compartment or to hold the Lamp Head during manual curing operations.
Lamp Power Select Switch (D)
– The Lamp Power Select Switch selects either the “full” or “standby” lamp power setting. When curing or warming up the Lamp, the Lamp Power Select Switch should be set to full power. Between curing operations, the Lamp Power Select Switch can be set to the half-power standby setting, which reduces the amount of heat and stray UV light radiated by the unit. The Lamp Power Select Switch should always be set to “standby” when the Lamp Head is idling on the Headrest. When switching back to full power, the Lamp will be ready for curing again after a brief 10-second re-warming period.
Input/Output Cooling Air Louvers (E & F)
– The Input and Output Air Louvers channel cooling air from the Fan in and out of the Lamp Head. These must remain unobstructed.
Cooling Fan (G)
– The Lamp Head Fan cools the Lamp, Reflector, and Internal Power Supply Circuit-Board Assembly.
Arc Bulb (H)
– Medium-pressure Arc Bulb which produces UV and visible light.
Reflector (I)
– Lamp Reflector which collects and concentrates light from all sides of the Arc Bulb. This surface should be kept clean to ensure maximum light output.
Accessories Storage Compartment (J)
– The Accessories Storage Compartment can be used to store and transport curing accessories (i.e. headrest, glasses, power cord, and adhesive).
Lamp-Head Latches (K)
– The Lamp-Head Latches are used to secure the Lamp Head to the bottom Accessories Storage Compartment during transport and storage.
