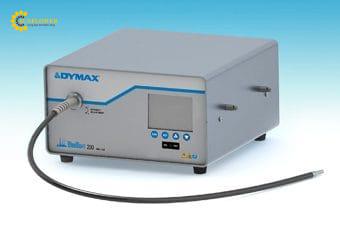

BlueWave 200 UV Light-Curing Spot Lamp

The BlueWave® 200 version 3.0 is a high-intensity, light-curing spot-lamp system. This unit emits energy in the UVA and visible portion of the spectrum (300-450 nm) for light curing of adhesives, coatings, and encapsulants. Ideally suited for either manual or automated processes, the system contains an integral shutter which can be actuated by a foot pedal or PLC and a universal power input that provides consistent performance at any voltage. A wide range of light guides in various materials and configurations are available for use with this spot-curing unit, providing application flexibility.
The BlueWave® 200’s faceplate design has an operator interface with an easy-to-read LCD display and patented intensity adjustment control. The control  is important for validating an appropriate intensity range and maintaining that range during production. Intensity measurement is easily accomplished with the Dymax ACCU-CAL™ 50 radiometer. Scheduled intensity measurements taken during the production process will indicate whether additional intensity adjustments are required.
FEATURES:
Patented intensity adjustment feature
>17,000 mW/cm2 initial intensity
Simple to operate and adjust
Easy-to-read, lighted front panel LCD display with enhanced unit status and notification displays
Improved user interface for easier operation
Up to 2,000 hours useful bulb life
Wide range of liquid/fiber, single/multi-pole lightguides available
Foot pedal or PLC integration
Extended exposure time settings to 9,999.9 seconds
Controlled power-up sequence ensures proper temperature
Integral shutter with digital timer
Fast bulb replacement
Proprietary “Cool Blue™” filter virtually eliminates lightguide degradation
Smooth front panel surface that is easier to clean
