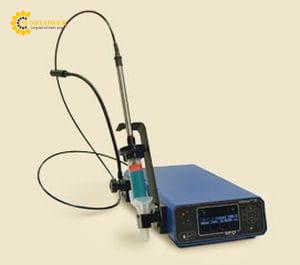

Nordson Ultimus IV Positive Displacement Dispensers

Positive displacement benchtop fluid dispensing control for general applications. The Ultimus™ IV Series is ideal for applying uniform amounts of two-part epoxies and other fluids that change viscosity over time. Compressed air is not required.
These electronically-operated units use stepper motors and patented technology to produce accurate, repeatable deposits regardless of changing fluid viscosity or temperature.
The operator uses a menu-driven touchpad to set deposit volume (as small as 0.1 microliters), flow rate, and other specific criteria. After the initial setup, there is no need to recalibrate or reset the dispenser due to changes in fluid viscosity or reservoir volume.
FEATURES:
All-electric, multi-function display
100 user-defined memory cells
Non-pneumatic, shop air not required
Programmable pullback stops drooling
BENEFITS:
Higher productivity and first-pass yields
Greater process control
Better product quality, reliability, and appearance
Less rework and fewer rejects
No waste or mess
PART NUMBER:
7017178 (2800-3)
For 3cc syringe barrels
7017181 (2800-5)
For 5cc syringe barrels
7017177 (2800-10)
For 10cc syringe barrels
7017179 (2800-30)
For 30cc syringe barrels
