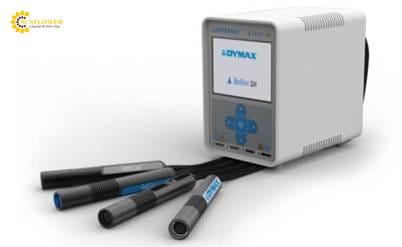

Dymax BlueWave® QX4® LED Spot-Curing System

The BlueWave
®
QX4® high-intensity spot-curing system features all the benefits of LED-curing technology in a smaller, more versatile unit. This system is comprised of a controller with a foot switch and up to four LED heads. LED heads are available in 365, 385, and 405 nm and can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the system’s variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments for each LED head, giving users maximum curing flexibility.
FEATURES:
One controller controls up to four LED heads for maximum application flexibility
LED heads available in 365, 385, or 405 nm wavelengths for higher compatibility with different light-curable materials
Variable mode allows each LED head to be programmed independently
Individual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibility
Interchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirements
Instant on-off – no warm-up period and more energy efficient
Efficient LED-head temperature management for maximized continuous operation without overheating and comfortable hand-held operating temperature
PLC interface that easily incorporated into automated systems
