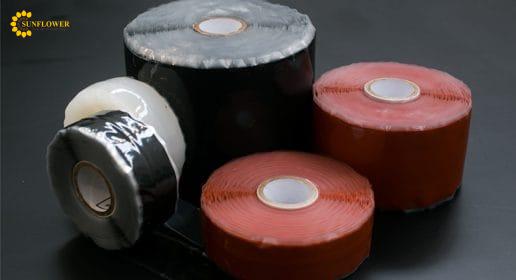

ARLON Self-Fusing Silicone Tapes

ARLON® and MOX-Tape® silicone tapes are produced from specially formulated silicone rubber. They bond irreversibly to provide an insulative barrier that is resistant to moisture, oxygen, ozone, and corona over a wide temperature range -54°C up to +204°C (-65°F up to +400°F). These products provide superior electrical insulation with a dielectric strength of 300 VPM minimum at 180°C (356°F).
PRODUCT CLASSIFICATIONS:
ARLON and MOX Tape Fiberglass Reinforced Tape
These self-fusing silicone tapes incorporate a sinusoidal fiberglass fabric that gives a controlled elongation and increased tear resistance. 15% and 25% controlled elongation fabrics are available.
ARLON and Mox Tape Rectangular Tape
Rectangular tape is of uniform thickness and is ideal for applications where a smooth, even layer of tape is not required.
ARLON and Mox-Tape Triangular Tape
The triangular tapes have a tapered edge and a colored guideline along the apex which makes wrapping with a 50% overlap simple and repeatable. These tapes are ideal for applications requiring a smooth, even layer of tape.
FEATURES:
No Adhesive: Chemically bonds to itself at room temperature within 24 hours
Remains non-tacky to the touch and does not adhere to other substrates or surfaces
Removes cleanly and easily
Insulates with a single wrap reducing labor time and cost
Resists moisture, oxygen and ozone to ensure continuous high insulation values
Available in flame retardant options with UL-V0 rated compound
Resists heat, mechanical shock, corona and dampens vibration
Conforms smoothly when wrapped around complex forms
All tapes are protected by a special interleaved liner
APPLICATIONS:
Mechanical
Wire Harness and Bundling Wrap
Emergency Pipe and Hose Repair
Pipe Identification
Air Duct Sealing
Coolant Line Repairs
Traction and Protection for Rollers
Electrical
Insulation for Splicing and Terminating Wire and Cable
Coil Insulation in Motors
Insulating and Sealing of Electrical Connections
Motor Connection Wrapping
Cable Management
Weatherproofing
Extreme Environments
Space and Aviation
Heated Transfer Lines
Radioactive Environments
Riggings and Power Systems in Marine
Underwater
