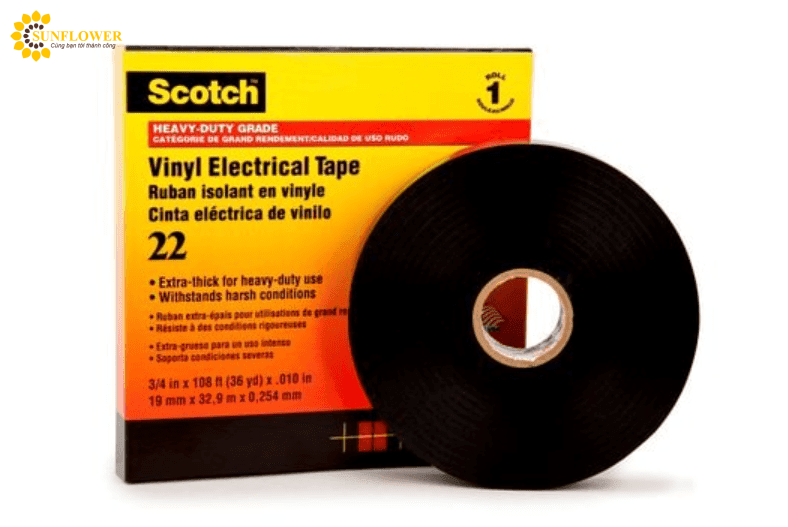

3M Scotch Heavy Duty Vinyl Electrical Tape 22

Scotch Heavy Duty Vinyl Electrical Tape 22 is a premium grade, 10-mil thick, vinyl insulating tape. It is designed to perform continuously in ambient temperatures up to 80°C (176°F). The tape is conformable for cold weather applications down to -10°C (15°F). It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions. The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk. Scotch Tape 22 is an Underwriters’ Laboratories Listed and Canadian Standards Association Certified “Insulating Tape.”
FEATURES:
Polyvinyl chloride (PVC) backing
Pressure-sensitive rubber-based adhesive
Compatible with solid dielectric cable insulations
Inhibits corrosion of electrical conductors
For indoor or outdoor applications
Increased mechanical strength
Extra physical protection against abrasion
APPLICATIONS:
Primary electrical insulation for all wire and cable splices rated up to 600 volts and 80°C (176°F)
Primary electrical insulation for 600-volt bus applications, and protective jacketing for high- and low voltage bus
Protective jacketing for high-voltage cable splices and repairs
Harnessing of wires and cables
