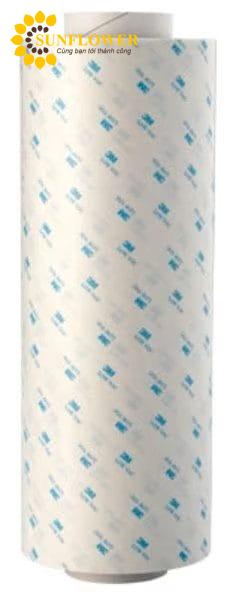

3M™ Low VOC Double Coated Tape 9599

3M™ Low VOC Double Coated Tape 9599 has a non-woven tissue carrier with acrylic adhesive on both sides. It provides high adhesion to a wide variety of materials and is suitable for automobile interior applications
FEATURES
VOC analysis (micro g / pcs): measured at external organization which is approved by
Formaldehyde:
0.07
Acetaldehyde:
0.07
Toluene:
0.11
Xylene:
0.02
Ethylbenzene:
ND
Stylene:
ND
Tetradecane:
0.03
Dibutyl phthalate:
ND
Di-2-ethylhexyl phthalate: ND
Sample Size:
80mm x 100mm/pcs
Dwell Temp
: 149°F (65°C)
Dwell Time:
120 minutes
Gas trapping volume:
4L with Tedlar bag
Absorption pipe:
Tenax-TA, DNPH cartridge
Absorb air in tedlar bag with each absorption pipe after heating and measure with gas chromatograph mass spectrometer or high speed liquid chromatograph.
APPLICATIONS
Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure helps develop better adhesive contact and improve bond strength. 15 psi momentary pressure is typical.
Ideal tape application temperature range is 70°F to 100°F (21°C to 37°C). Initial tape application to surface at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once applied, low temperature holding is generally satisfactory. Surfaces should be clean and dry prior tobonding. We recommend a final surface cleaning with a mixture of 50% isopropyl alcohol and water.
