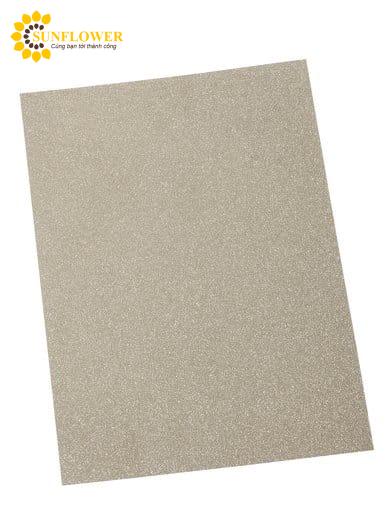

3M™ Electrically Conductive Adhesive Transfer Tape 9707

3M™ Electrically Conductive Adhesive Transfer Tape (ECATT) 9707 is a pressure-sensitive adhesive (PSA) transfer tape with isotropic electrical conductivity. The PSA matrix is filled with conductive fillers that allow interconnection between substrates through the adhesive thickness (the “Z-axis”) and also provides electrical conductivity in the plane of the adhesive (“X-Y Axis”).
3M ECATT 9707 and 9707K are ECATT products produced at different manufacturing locations. 3M ECATT 9707 and 9707K use similar base material types, however, the ratios were adjusted slightly to achieve desired manufacturing specification performance results as determined by 3M test methods.
Key features
Good XYZ electrical conductivity performance with good adhesion
Room temperature application and assembly
Inherent EMI shielding capability can enhance existing shielding solutions, offer new design options and improve Faraday cage designs
Provides an electrical connection and adhesively bonds EMI/RFI shields and gaskets to metal frames and enclosures
Low contact resistance and tape construction for good EMI performance
Can be applied as die cut parts or in roll form
Can offer lower contact resistance to hard surfaces or surfaces with oxide layers, such as to stainless steel as compared to 3M ECATT 9709
