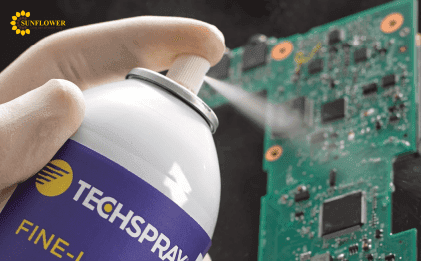

UR Urethane Conformal Coating 2104

Techspray® offers a variety of coating formulas to match field and engineering requirements. Specifications generally depend on the type of protection needed. E.g. thermal, moisture, and static resistance.
Coatings contain Opti/Scan to allow quality control inspection of coverage and evenness of the coating on a PCB. A coated board can be passed under a standard, low-cost UV (short-wave black) light, and the coated areas glow. The brighter the glow, the thicker the coating.
FEATURES:
• Thermal resistance – to 248°F (120°C)
• Dielectric strength – 380 volts/mil
• Moisture resistant
• Chemically resistant
• Abrasion resistant
• UL94 V-0 – nonflammable final coat
• IPC-CC-830B qualified
• UV indicator for black light QC inspection
