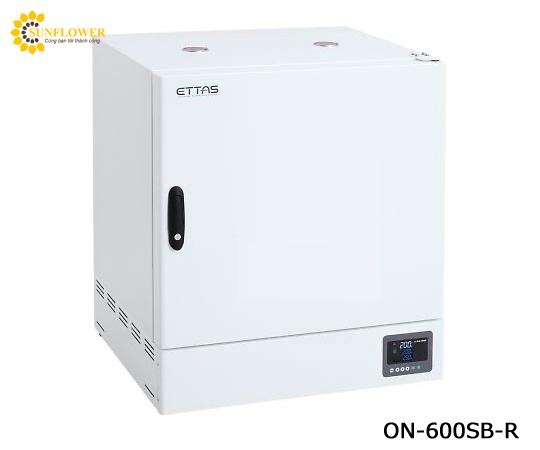

Tủ sấy đối lưu tự nhiên 300oC không có cửa quan sát AS ONE ON-600SB-R 1-9002-46

Inner dimensions (mm): 600 x 497 x 500
Door: right
Temperature control range: R.T. + 20 to 300 °C
Maximum temperature arrival time: about 80 minutes
Temperature distribution accuracy (JTM K05): ±6 °C (at 300 °C)
Temperature fluctuation (JIS): ±3 °C (at 300 °C)
Temperature gradient (JIS): 22 °C (at 300 °C)
Temperature control method: 3 stages PID control, SSR output
Communication function: standards : Bluetooth Smart (Bluetooth 4.2)/Distance: Class2 (Approximately 10 m)
Logger Features:
*Recording method: full stop (Stop recording in full memory)
*Recording period: 2 seconds/10 seconds/30 seconds/60 seconds/10 minutes/60 minutes
*Display period: 2 sec/10 sec/30 sec/sec/60 sec/300 sec
External applications:
*Functions: Start/Stop Recording, Read/Erase Recorded Data, Transfer to PC/List Display, Trend Graph Display (Scalable)
*recording format: CSV format
*Compatible OS: iOS 11.4 and later
*compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
Additional function: timer (ON/OFF timer, SV start/ON/OFF timer)/temperature gradient program of up to 16 steps x 8 patterns/day/time specification timer
Safety device: Digital setting type overrise prevention function, overcurrent breaker burnout mechanism (Heater OFF when sensor is disconnected)
Heater capacity: 1400W
Temperature sensor: K class thermocouple x 2 pieces (1 piece for temperature control and overheating prevention)
Inner capacity: about 150L
pitch TANA/mm number of step: 35 pitch/11 Dan
Exterior/Interior: Steel powder coating/Stainelss steel SUS304 (Partly applied stainless steel SUS443J1)
Air outlet: φ32mm x 2 pieces
Outer dimensions: 700 x 617 x 810mm
Observation window size: 300 x 350mm (Only ONW/SONW type)
Weight: about 50kg
Power supply: AC100V 50/60Hz Cord length 2.4 m (3P plug)
rated current: 14.5 A
shelf board, load tolerance: 5kg
Accessories: shelf board x 2 pieces/shelf board rail x 2 sets
