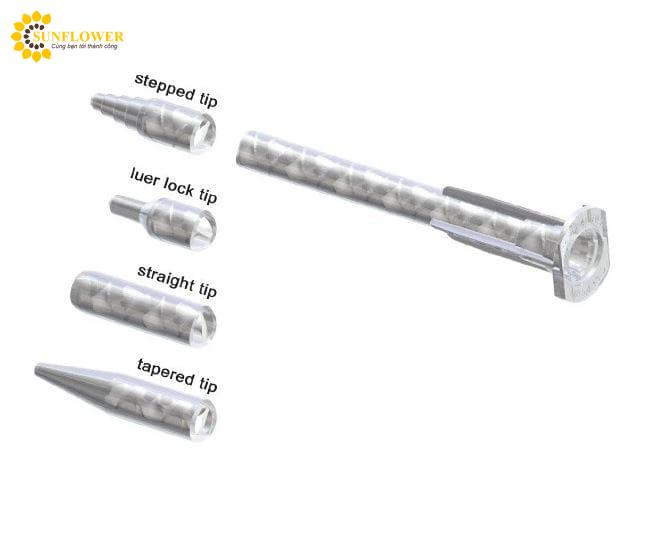

Sulzer Mixpac MAH (MA) Disposable Static Mixer Nozzles

The Sulzer Statomix MAH (formerly MA Series) is a bayonet-style mixer with a twist and lock mount for 1:1 and 2:1 adhesive dispensing. Locking the MAH mixer into place automatically aligns the first element when using the Sulzer A System Kit.
The MAH mixer comes in with a wide variety of elements and styles able to mix almost any two-part material including silicone, epoxy, urethane, acrylic or polyester. Aside from the manual application, the MAH mixers can also be used in low-pressure meter mix dispensing.
FEATURES:
Brand
Sulzer Mixpac
Cartridge Size
25 mL, 50 mL
Connection Type
Bayonet
Mixing Ratio
1:1 & 2:1
Sulzer System
A System Industrial
Sulzer MBH Nozzle Configurations by Part Number:
102361 MAH 03-07S
102362 MAH 03-13S
102364 MAH 03-17S
102365 MAH 04-13D
102366 MAH 04-13S
102367 MAH 04-17D
102368 MAH 04-17S
102369 MAH 05-07T
102370 MAH 05-13D
102371 MAH 05-13T
102360 MAH 0517-0413T
102372 MAH 05-17T
102373 MAH 05-21T
102375 MAH 06-12D
102377 MAH 06-12T
102378 MAH 06-17T
102379 MAH 06-21L
102380 MAH 06-21T
