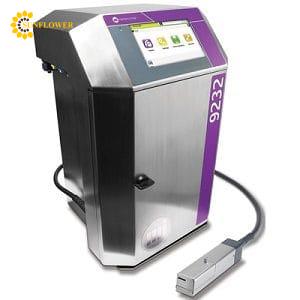

Small Character Inkjet 9232

The 9232 covers a large range of coding applications, from general purpose marking to high performance marking up to 3 shifts in the food, beverage, cosmetics, toiletries, electronics, aerospace and automotive industries. The 9232 offers optimum and intuitive management of marking solutions allowing for better control of associated costs, environmental impact and printing performance.
MAIN BENEFITS:
Up to 5 lines of printing for « best before » dates, logos, alphanumeric text, 1D and 2D barcodes.
Print speeds of up to 6.6 m/s.
Font heights of up to 32 dots.
Broad range of specialty inks, including returnable glass ink for washable marking. New multi-use ketone-free and MEK-free inks.
Excellent availability ratio of up to 99.6% without assistance due to its new ink circuit and innovative printhead.
18-month warranty for hardware and up to 5-year warranty available.
IP56 stainless steel cabinet as standard (IP66 optional).
Enhanced ink cartridge life to print up to 90 million characters per liter as standard.
Additive consumption can be reduced by up to 2.5 ml/h at 20°C.
PRINT FEATURES:
Mono-jet printhead
G head (printing resolution: 71 dpi)
Up to 5 lines of print
Print speed: up to 6.6 m/s
Font height from 5 to 32 dots
Character height: from 1.8 to 11.4 mm
Wide choice of 1D and 2D barcodes (EAN8/EAN13/UPCA/UPCE barcodes, code 39, interleaved 2 of 5, Datamatrix)
OPERATIONS:
Message library (up to 1000 messages)
WYSIWYG 7-inch wide touch screen: real-time display of remaining print capacity expressed in hours and number of messages; integrated assistance and alert system; simplified message printing and management; creation of user profiles; and tracking of consumption and printer availability
Broad range of inks: multi-use, high performance; alcohol-based, ketonefree and MEK-free inks available
Parent/child connectivity
Ethernet connectivity
OPTIONS:
Ultra-flexible 6-meter umbilical cable
IP66 protection (requires plant air)
Ultrarapid mode for high-speed printing
Printhead pressurization kit
RS-232/422 connectivity, parallel interface, many I/O possibilities to enable remote operation
