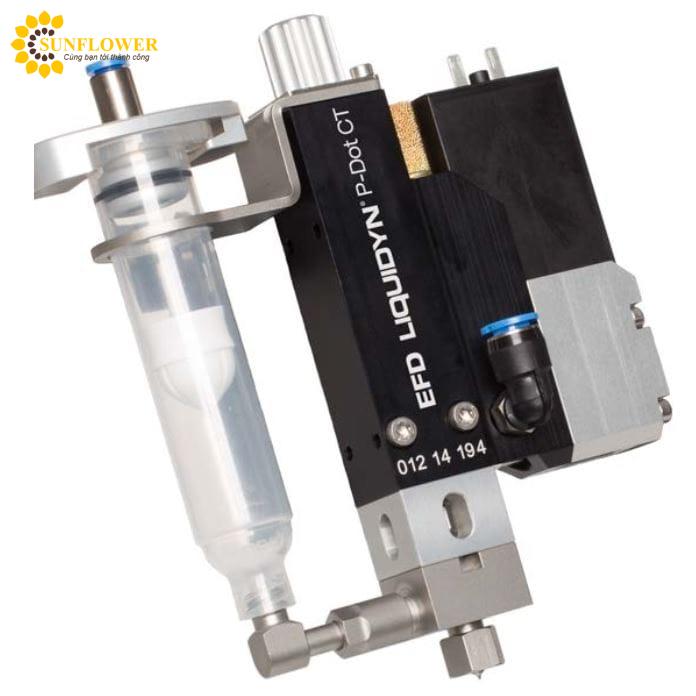

Nordson Liquidyn P-Dot CT Actuator

Designed for thicker medium-viscosity to highly viscous materials, the pneumatically actuated Liquidyn® P-Dot jet valve provides very precise, repeatable jetting in the form of dots, beads, and lines.
With extremely short triggering intervals of less than 1 ms, it is possible to accurately apply small amounts of viscous fluids. Deposit volumes range from 3 nL to 200 nL and can be dispensed at frequencies up to 150Hz.
The Liquidyn P-Dot features interchangeable dispensing nozzles, tappets, and fluid inlet fittings, which make it easy to adapt for exacting application requirements. Wetted parts separate from the actuator simplify service and maintenance.
The valve’s rigorously-tested design makes it able to withstand highly-industrial environments. It also has a low cost of ownership.
Features
Highly precise, consistent jetting of medium- to high-viscosity materials
Separate wetted parts and interchangeable components allow for quick, easy maintenance and adaptability for exacting application requirements
Deposit volumes ranging from 3 nL to 200 nL at dispensing frequencies up to 150Hz
Compatible Fluids
Adhesives
Lacquers
Oils/greases
Silicones
Fluxes
