The Optiv Classic line is the easy way of getting started in optical and multisensor metrology. The machine base of all models is made of granite, offering robust construction for tough working conditions. Available in a range of sizes and with a complete range of sensors to choose from, the Optiv Classic coordinate measuring machine (CMM) is your entry to the world of multisensor measurement.
FEATURES:
Vision sensor with high-resolution digital camera
Motorised CNC zoom
Powerful image processing with video filters for image optimisation in difficult optical conditions
Variable illumination: Coaxial LED top light, LED back light and multi-segment LED ring light for high contrast illumination of complex surfaces and edges
PC-DMIS measuring software: Ease of operation thanks to automatic PC-DMIS routines, for example for part alignment or sensor calibration
MODELS:

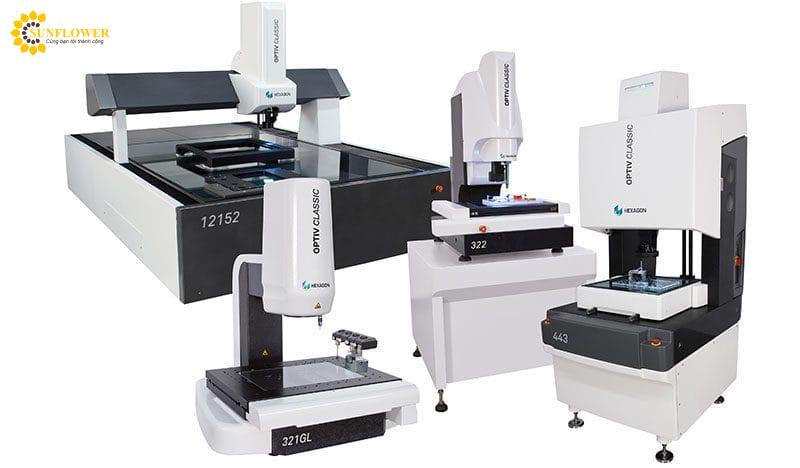

Optiv Classic 321 GL
Space-saving benchtop unit
The most lightweight of the Optiv Classic line with a machine weight of 170 kg
300 x 200 x 150 mm XYZ measuring range
Options: Touch-trigger probe HP-TM or TP200, probe module changer racks with up to four ports, rotary indexing table
Optiv Classic 322 / 432
Economic entry-level machines with great price/performance ratio
Optiv Classic 322: 300 x 200 x 200 mm XYZ measuring range
Optiv Classic 432: 400 x 300 x 200 mm XYZ measuring range
Options: Touch-trigger probe HP-TM, probe module changer rack HR-P with four ports, rotary indexing table
Optiv Classic 443
Robust precision instrument with medium-sized measuring volume
Low-vibration granite construction with a fixed bridge and a moving measuring table
400 x 400 x 300 mm XYZ measuring range
Options: Touch-trigger probe HP-TM, probe module changer rack HR-P with four or six ports, rotary indexing table
Optiv Classic 8102 / Optiv Classic 12152
Bridge-type measuring machine with fixed measuring table and laterally-driven bridge,
granite traverse with triangular cross-section, freely movable measuring carriage (X axis) from which the vertical axis protrudes
Measuring carriage (X axis) and bridge (Y axis) with precision air bearing guides,
vertical axis (Z axis) with mechanical linear guides
Optiv Classic 8102: 800 x 1000 x 225 mm XYZ measuring range
Optiv Classic 12152: 1200 x 1500 x 225 mm XYZ measuring range
Laser pointer to facilitate navigation during the measuring program generation
Optiv Classic 8102: Additionally with an integrated subframe
