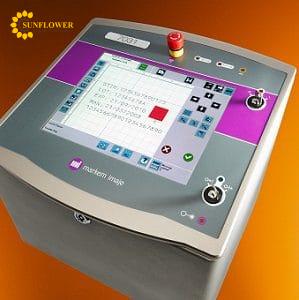

Laser 7031L HD

The compact, modular scribing CO2 lasers deliver permanent, high quality product coding (text, variable data, logos, 1D and 2D barcodes). The 7031L HD has been designed to reach highest production line efficiency and works in the most demanding production environments, especially those requiring multi-head scribing. This high power vector technology is well suited to scribe on flexible foils, for yogurts and stick packs. The 7031L HD reduces production costs and meets your sustainability targets.
MAIN BENEFITS:
Excellent availability ratio of up to 99.9% (quick printer start-up, no regular production line maintenance stoppages, no need for traversing units, no moving mechanical parts).
Proven laser head system to guarantee foils and sticks integrity with no piercing risk.
Coding on a large range of colored foils.
Wide coding area (one meter with two heads).
Large choice of fonts including Chinese.
IP65 head for humid and dusty environments (requires plant air).
Intuitive user interface for quick and easy message editing and adjustment of codes positioning.
A dedicated fume extraction system provides a cleaner, healthier, safer and odorless working environment.
PRINT FEATURES:
Top code quality up to 55 cycles/min on stick packs and pouches
Large marking fields to minimize the number of printheads per line:
Two equipments covering 560 mm coding width (Fd 400)
Three equipments covering 960 mm coding width (Fd 360)
Four equipments covering 1152 mm coding width (Fd 360)
Top code quality up to 35 cycles/min on pot lids
Large marking fields to minimize the number of printheads per line:
One machine up to 24 pots covering 500 mm coding width (Fd 720)
Two machines up to 48 pots covering 1000 mm coding width (Fd 720)
Compliant with various pot matrix layout (4×6 pots, 2×8 pots, 4×12 pots)
