Laser 7031 HD

The compact, modular scribing CO2 lasers deliver permanent, high quality product coding (text, variable data, logos, 1D and 2D barcodes). The 7031 HD has been designed to work in the most demanding production environments, especially those requiring multi-head scribing. This high power vector technology is well suited for printing onto substrates such as inked paper, painted metals or glass especially in the food and beverage industries.
MAIN BENEFITS:
Innovative modular design consisting of 3 separate components: controller, cable and laser head. Most compact, robust laser head with 90° laser beam orientation and ultra flexible interconnecting cable (6 or 9 meters).
Modular cooling concept for optimal laser performance, increased laser source reliability and reduced operating costs (no air).
Wide choice of lenses. Easy positioning onto a single film of numerous messages and control of multiple laser heads with CoLOS software. Capable of covering coding and scoring applications simultaneously.

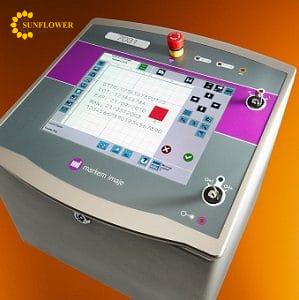

Large WYSIWYG color touch screen display with intuitive icons and shortcuts for user-friendly operations.
Excellent print quality in large printing areas (lens 340 x 340 / fd 482).
High output rates (800 products/minute) without requiring external cooling (no air or water).
Additional energy density of source results in impeccable higher contrast and resolution codes.
PRINT FEATURES:
Output rate: up to 800 products/ minute
Production line speed (max.): 30 m/min
Coding on stationary or moving products
Number of text lines: No limit
Character height: 1.5 to 100 mm
Set of vectorized fonts, TrueType compatible, extended characters
Specific fonts for thin material
Coding area and focal distance (mm, standard): Lens 340 x 340 / fd 482
OPTIONS:
• Interconnecting cable length: 6 m
• Dust/humidity protection: IP54
• IP65 head (requires plant air)
Coding area and focal distance (mm):
Lens 50 x 50 / fd 75
Lens 70 x 70 / fd 100
Lens 105 x 105 / fd 150
Lens 140 x 140 / fd 200
Lens 155 x 155 / fd 225
Lens 280 x 280 / fd 400
Lens 415 x 415 / fd 600
9-meter interconnecting cable length with an optional 90° orientation or 6-meter cULus listed interconnecting cable
