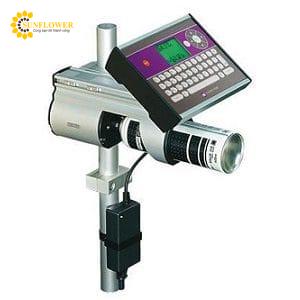

Large Character Valvejet Crayon Plus

The Crayon Plus’ patented and proven drop-on-demand valvejet technology and its unique design allow for both high quality coding and seamless integration onto all manufacturing lines. Characterized by its ultra compact size, the Crayon Plus is perfect for one side case coding in typical packaging environments.
MAIN BENEFITS:
Consistent, quality printing up to 15 mm marking distance with automatic print speed and direction sensors for full control.
7 or 16 nozzle printheads available for 1 or 2 lines of text.
Print speed up to 60 m/min.
Low ink level alert enables ink cartridge replacement in seconds – without stopping production.
Wide range of variable settings and formats to personalize messages with more than 22,000 Unicode characters available to comply with local and export markets.
One click, plug-in ink cartridge, 4-line graphic display, WYSIWYG print preview and intuitive, international interface for trouble-free operations.
PRINT FEATURES:
2 water based ink colors – black and red – for porous surfaces
7 nozzle printheads to print 1 line of 12 mm or 1 line of 20 mm
16 nozzle printhead to print 1 or 2 lines of 20 to 44 mm
Prints text, time, date, 2 expiration dates, shift code, 2 counters (automatic numbering), more than 22,000 Unicode characters
Message length up to 100 characters
Character width adjustment
Print delay for message placement. Easy print positioning on cases
Top and side printing
Up to 15 mm between the printhead and the object
Standard or upside down printing
Print direction from right or left
Print speed up to 60 m/min
Ink circuit:
Internally regulated and factory set
No adjustments needed
400 ml pre-pressurized ink cartridge with ink level alarm
