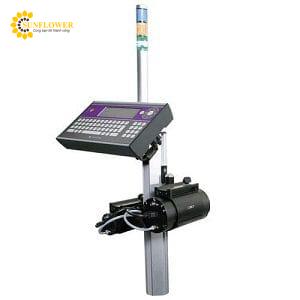

Large Character Valvejet 4020

The 4020’s patented and proven drop-on-demand valvejet technology and its unique design allow for both impeccable coding and easy integration onto all manufacturing lines. Characterized by its compact size, it is perfect for multi-side case coding for up to 2-3 shifts.
MAIN BENEFITS:
Constant, excellent print quality up to 20 mm marking distance.
Up to 4 printheads per controller, 7 or 16 nozzle printheads in any combination and print heights from 8 mm to 64 mm.
New ‘Ink Efficient Printhead’ with enhanced drop control to optimize ink consumption.
The new ink system ensures ink barrel is fully emptied.
Print speed up to 90 m/min.
Large graphic display with print preview, intuitive interface in local language.
Choice of black and color inks for both porous and non-porous substrates: cardboard, coated cardboard, plastic, glass, metal, PVC, wood, concrete…
4.5 L containers as standard. Large ink containers up to 30 L available for even higher uptime. Low ink alert enables operator to anticipate barrel replacement.
Standard Ethernet connection, 2 high speed RS232 com ports, ActiveX component and optional digital I/O box for easy integration.
PRINT FEATURES:
Up to 4 printheads per controller
7-nozzle printhead; 1 line of text; 16-nozzle printhead; 1 or 2 lines of text
Print height: 8 mm to 64 mm
Prints alphanumeric text including: time, date, 2 expiration dates, shift code, 3 counters (automatic numbering), user prompt, external variables and bitmap files
Prints more than 22,000 Unicode characters (Arabic, Cyrillic, Chinese, Greek, Hebrew, Kanji, Katakana and Latin)
Message length up to 5,000 characters
Character width can be adjusted
Adjustable print delay for message placement
Print positioning on cases includes: top, side, opposite side and bottom
Up to 20 mm “throw-distance” between the printhead and substrate
Standard or upside down printing, bi-directional printing; both from the right and left
Print speed up to 90 m/min
