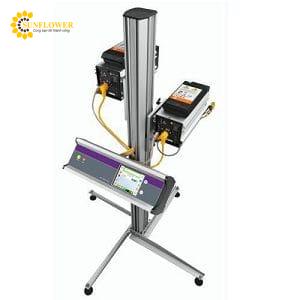

Large Character High Resolution Piezo 5800

The 5800 large character inkjet printer represents the next generation of Touch Dry® Hot Melt technology delivering a superior print quality coding solution for your corrugate cases, trays and wrapping films. Markem-Imaje Touch Dry® Hot Melt inks are solvent free and environmentally friendly. Codes and messages never bleed or fade, dry on contact and deliver 100% readable, GS1 compliant codes.
MAIN BENEFITS:
Touch Dry® Hot Melt inks print on a wide range of substrates and in environments ranging from 0 to 40 ºC.
The printer, boasting print speeds up to 182 m/min., can be equipped with optional printhead slide assembly optimizing both print gap control and print quality.
Cutting-edge communication capabilities include color touch screen, Ethernet, USB, and web user interface, providing increased flexibility and functionality to end users, integrators and OEMs.
Optional CoLOS Enterprise networking software is available for central management of data from remote databases or ERP systems.
Compact, modular design for stand-alone operation or complete integration.
Advanced printer design provides quick start up and minimizes overall energy consumption.
Uptime features include a unique programmable self maintenance system and ink reloading capability during operation.
Touch Dry® solid ink blocks are easily handled for simple and trouble free operation.
PRINT FEATURES:
Printhead dpi
Vertical dpi: 200
Addressable Jets: 256
Nozzles: 512
Print speed: continuous
Print density 1 – 200 by 150 dpi Up to 182 m/min
Print density 2 – 200 by 300 dpi Up to 91 m/min
Print density 3 – 200 by 450 dpi Up to 61 m/min
Print density 4 – 200 by 600 dpi Up to 45 m/min
Print density 5 – 200 by 750 dpi Up to 36 m/min
Print densities available: 1 to 8
Encoder scaling: allows for conveyor line speed matching and for higher print speeds with a reduction in print resolution
Print area: maximum/printhead
Print height: 65 mm
Print length: 1,000 mm
Print specification: full true type font supported
Printing of real-time clock (hr/min), dates and auto updating best before dates and serial numbers • Barcodes (Linear and 2D): ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, Datamatrix, RSS linear, RSS composite, QR, RSS 14, RSS expanded, PDF 417
