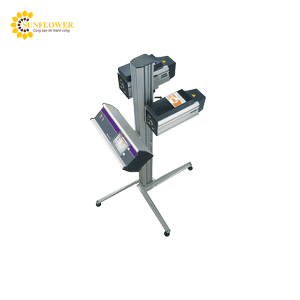

Large character high resolution piezo 5600

The 5600 large character inkjet printer represents the latest in liquid piezo technology, delivering a uniquely competitive cost-per-print coding solution for your corrugate cases and trays. Markem-Imaje’s patent pending, quick-drying liquid ink, combined with our printhead technology, provides superior opacity delivering clear, consistent images, text and readable barcodes with less ink per print.
MAIN BENEFITS:
Quick-drying liquid ink prints on a wide range of porous substrates and in environments ranging from 0 to 40 ºC. The printer, boasting print speeds up to 182 m/min., can be equipped with an optional printhead slide assembly optimizing both print gap control and print quality.
Cutting-edge communication capabilities include color touch screen, Ethernet, USB, and web user interface. Optional CoLOS® Enterprise networking software is available for central management of data from remote databases or ERP systems.
Compact, modular design for stand-alone operation or complete integration. Fully upgradeable hardware and software to meet changing business needs.
The advanced rigid ink management system, which includes a large capacity, self-contained, cartridge designed to recover purged ink, can be replaced during production for continuous operation. Our unique ink jetting technology reduces mess and maintenance for ultimate control of printing costs.
PRINT FEATURES:
Printhead dpi: – Vertical dpi: 100 – Addressable jets: 256 – Nozzles: 256
Print speed: continuous
Print density 1 – 100 by 150 dpi Up to 182 m/min
Print density 2 – 100 by 300 dpi Up to 91 m/min
Print density 3 – 100 by 450 dpi Up to 61 m/min
Print density 4 – 100 by 600 dpi Up to 45 m/min
Print density 5 – 100 by 750 dpi Up to 36 m/min
Print densities available: 1 to 8
Encoder scaling: allows for conveyor line speed matching and for higher print speeds with a reduction in print resolution
Print area: maximum/printhead
Print height: 65 mm
Print length: 1,000 mm
Print specification: full true type font supported
Printing of real-time clock (hr/min), dates and auto updating best before dates and serial numbers
Barcodes (Linear and 2D): ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, Datamatrix, RSS linear, RSS composite, QR, RSS 14, RSS expanded, PDF 417
