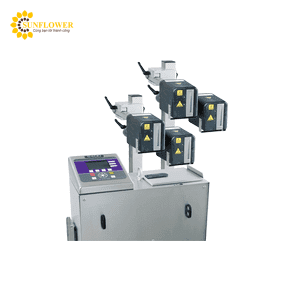

Large Character High Resolution Piezo 5200/5400

Precise and dependable – Our 5200 and 5400 high resolution, large character inkjet printers combined with our Touch Dry® Hot Melt inks deliver superior print quality and consistency on corrugate cases, trays and wrapping films. Touch Dry® Hot Melt inks print messages which dry instantly on contact with no bleeding or fading; producing 100% readable barcodes. Touch Dry® inks are solvent free, environmentally safe, and employee friendly in formulation and handling.
MAIN BENEFITS:
The correct information on every case, every time. Touch Dry® Hot Melt ink eliminates the need for multiple ink formulations and change-over. Stage or add ink without stopping the production line. Our solvent-less ink and auto-purge technology reduce operator maintenance.
Touch Dry® Hot Melt inks print on a wide range of substrates and environmental conditions. Large drop volume at high frequency provides reliable printing at speeds up 178 m/min. Multiple dye and pigment based inks and customizable printer settings give total message control.
Multiple jetting orientations; single side, opposite side, side and front, and top printing. Product configuration options include scanners, encoders, printhead slide assemblies, and stands. The 5400 can be integrated with production lines, databases, or ERP systems via CoLOS Enterprise software.
PRINT FEATURES:
Print Head (PH) dpi
Vertical dpi: 200
Addressable jets: 256
Nozzles: 512
Print speed: continuous
Print density 1: 200 by 150 dpi Up to 178 m/min
Print density 2: 200 by 300 dpi Up to 89 m/min
Print density 3: 200 by 450 dpi Up to 59 m/min
Print density 4: 200 by 600 dpi Up to 44 m/min
Print density 5: 200 by 750 dpi Up to 36 m/min
Print densities available: 1 to 10
Encoder scaling: allows for conveyor line speed matching and for higher print speeds with a reduction in the print resolution
Slant mode: increases PH vertical dpi from 200 to 282 with a maximum image height of 46 mm
Print area: maximum/PH
Print heights: 65 mm
Print length: 1,200 mm
Print specification extended ASCII character set
Printing of real time clock (hr/min/sec), dates and auto updating best before dates and serial numbers
Barcodes (Linear): ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC and RSS
Barcodes (2D): static Datamatrix, Composite RSS and dynamic QR
