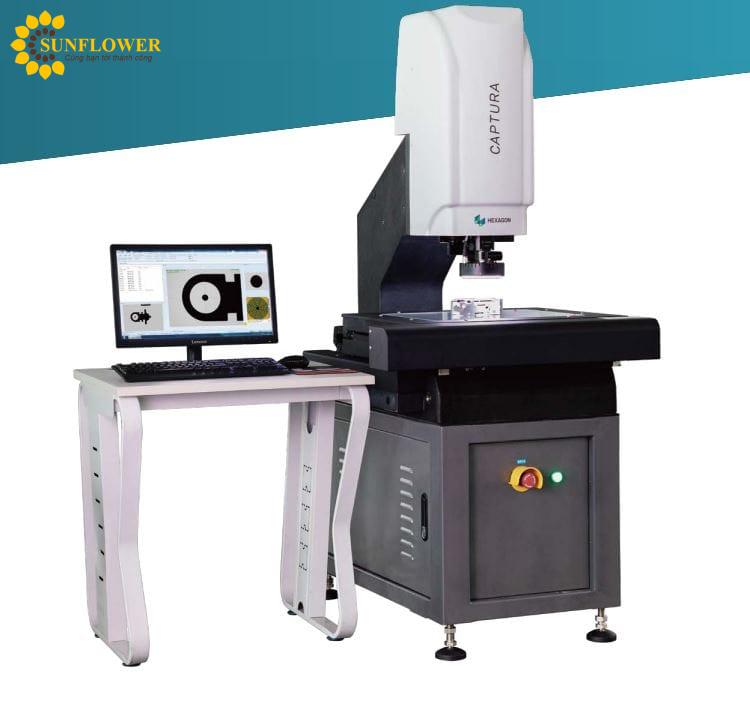

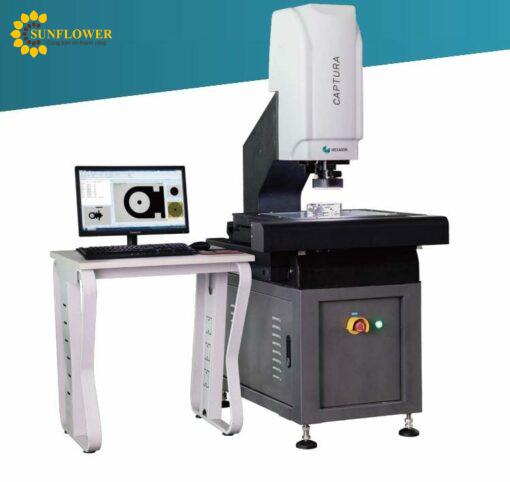

Hexagon Captura 322/432/542

Captura is one of Hexagon Vision product line, with good performance and better price in the entry level market. Captura supports multi-sensor measurements using the Vision sensor, laser sensor, confocal sensor. The basic machine with vision sensor can be expanded with all the available sensors. The dynamic machine concept offers a high positioning accuracy and is designed for fast measuring point acquisition and high-performance vision capturing. Measurement software is Metus, which is a Hexagon owned software with more friendly interface and flexible operation mode.
FEATURES:
High precision granite construction to ensure long-term stability.
Three axis full servo closed loop control system;
Grinding grade screw drive, accurate positioning, high motion accuracy
High resolution color CCD; High resolution 1/1.8-inch CMOS camera (H 1280 x V 1024 pixels) with Gigabit Ethernet interface
Customized CNC zoom with 6.5X Magnification and 10 steps
Magnification:25*215 (24’’ Screen)
Navigator system
Resolution of the scales : 0.4 um
Illumination for Vision sensor
Parallel LED backlight
6-rings & 8-segment LED ring light (white LEDs)
Coaxial LED top light（optional）
Joystick
OPTIONAL:
Keyence sensor
Omron confocal sensor
APPLICATIONS:
Widely used:
glass panel industry, automotive parts industry, aerospace industry, plastic and mould industry, PCB and electronic industry, medical equipment industry, watch industry, cutting and cutting tool industry, precision processing industry, jewelry industry, etc.
