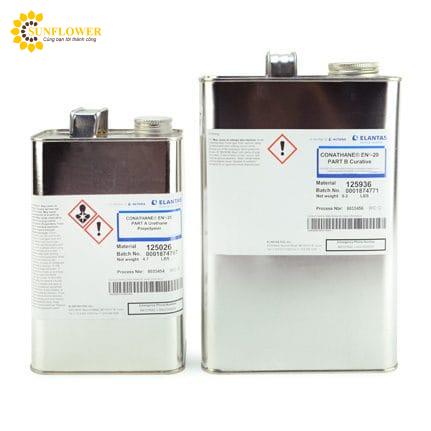

Elantas CONATHANE® EN-20 PU Potting Compound

Product Description
Features and benefits of CONATHANE® EN-20
Application of CONATHANE® EN-20
Application/Curing schedule
Transportation/Storage
About Vật tư Sunflower
Product Description
Elantas CONATHANE® EN-20 is an unfilled, two- component, room temperature curing, 100%- solids polyurethane system.
Features and benefits of CONATHANE® EN-20
Excellent electrical properties
Low viscosity
Low exotherm and low shrinkage
Thermal shock resistant
Room temperature or low temperature cure
Low stress    buildup    on    embedded components
Excellent moisture resistance
Convenient 1:2 volume mix ratio
Application of CONATHANE® EN-20
Potting and encapsulation of electrical and electronic assemblies
Ideal for use in potting transformers, coils, reed and mercury switches, inductors, solid-state ignition systems, voltage regulators, ballasts, microcircuits, rectifiers and printed circuit assemblies
Application/Curing schedule
Mix Resin and Hardener in the ratio specified above until homogeneous. If hand mixing, degas at 1-5 mm Hg vacuum before use. The two components should be mixed thoroughly in metal or glass containers using metal or glass stirrers. Do not use paper or wooden containers or implements in mixing as they may introduce moisture into the system.
Cure 4 hour at 80°C and 7 days at 25°C / 77°F – OR – 16 hours at 80°C / 176°F and 4 days at 25°C / 77°F
The cure schedules above are based on time after the unit reaches the specified temperature and are recommendation.
Transportation/Storage
Sore at 25°C / 77°F in a dry, controlled environment out of direct sunlight. This material should be suitable for use when stored under these conditions in the original sealed containers for twelve (12) months from the date of shipment.
Failure to store the product as recommended may lead to deterioration in product performance.
This product is sensitive to moisture and atmospheric humidity. Once opened, containers should be used immediately or blanketed with dry air or nitrogen (CONAP® Dri-Purge) before resealing.
Mix individual components thoroughly before use.
