4-Axis RV Series Automated Fluid Dispensing Robot

Easy 4-axis automation for precise fluid application with smart vision

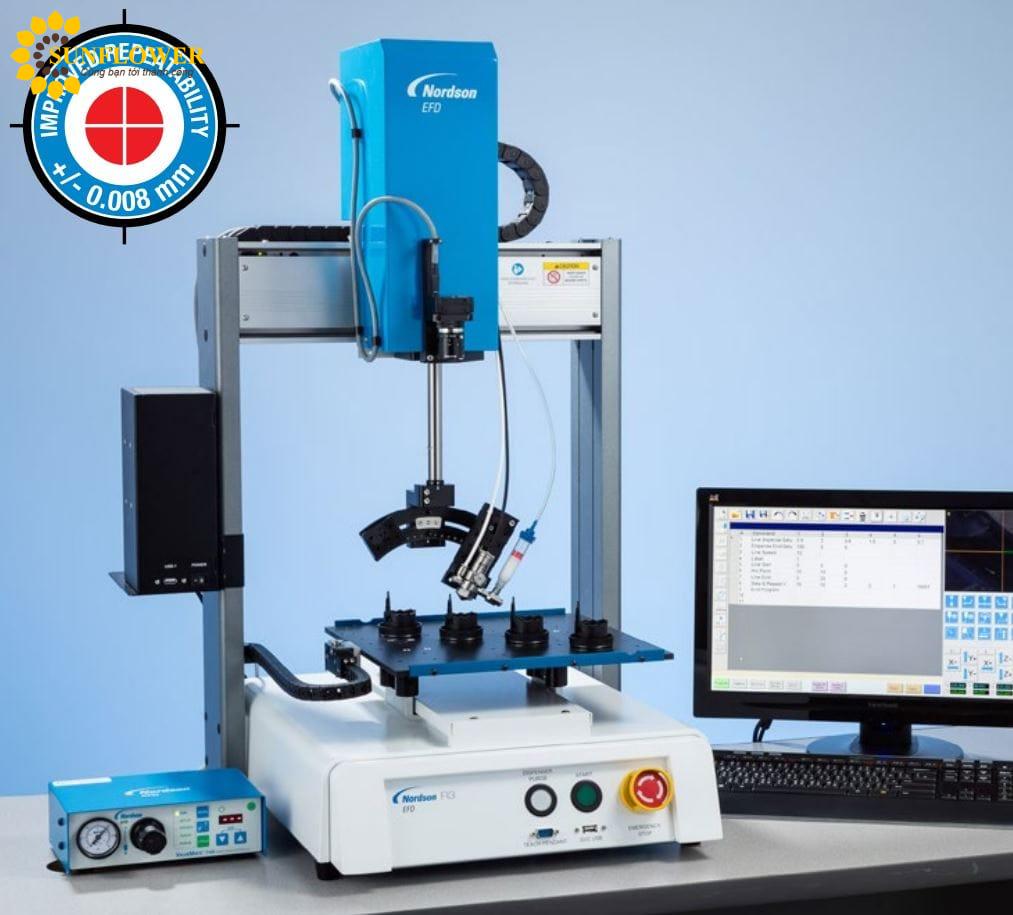

Nordson EFD’s RV Series 4-axis automated systems are configured for precise fluid dispensing using EFD syringe barrel and valve systems.
Specialized vision-guided DispenseMotion™ software and an integrated CCD smart vision camera make the RV quick to set up and easy to program. True three-dimensional motion control provides easy programming of dots, lines, circles, arcs, compound arcs, and patterns on different planes. The fourth axis allows for dispensing at any angle along the 360° rotation plane.
In addition to its standard fixed-mount CCD camera, the RV Series has an optional rotating-mount camera that mounts onto the R-axis of the robot. This allows multiple substrate viewing orientations at 0° or 90° angles. It also allows multi-focus on multiple substrate heights.
Other standard features include single-point needle adjustment and best-in-class dispense repeatability at +/- 8 μm. Platforms range from 300 x 300 mm to 620 x 500 mm, making them an ideal solution for batching or critical dispensing applications. The RV Series can work as a standalone system or as a key part of an automated solution. It is easy to integrate into inline transfer systems, rotary tables, and pallet assembly lines.
FEATURES
Simplified setup and programming with EFD’s advanced vision-guided DispenseMotion software
On-screen preview of the dispensing path facilitates programming
Software wizard simplifies tip-to-camera and tip-to-workpiece offsets
Dispense tip alignment capability
Easy USB file upload and download
360° rotation for ID and OD dispensing
Simultaneous X and Y movement during R (rotation) for true point programming
BENEFITS
Market-leading dimensional positioning accuracy and deposit placement repeatability
Faster cycle and batch times
Easier to set up and program quickly
Seamless integration into any manufacturing operation
Reduced production, material, and ownership costs
