3M™ Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).
3M™ Tape Super 20 has an acrylic, pressure sensitive adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. Highly conformable tape is tough and provides resistant to solder damage. It is suitable for use in wrapping relays, coils, transformers, bobbin wound sub fractional horsepower shaded pole motors and stick wound coils. UL Listed and RoHS 2011/65/EU Compliant.
Features
Commonly used in wrapping relays, coils, transformers, bobbin-wound sub-fractional horsepower shaded-pole motors, stick-wound or arbor wound coils and wire harnesses
Adhesive requires no heat, moisture or other manner of preparation to affect application
Designed for continuous operation not exceeding 155°C (311°F) per UL and CSA listings

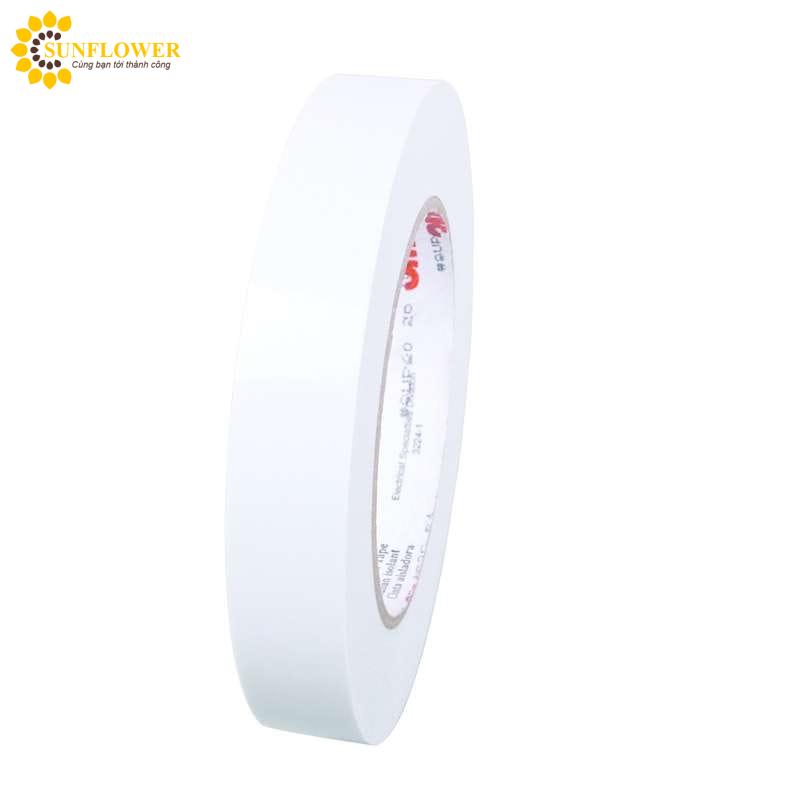

3M™ Epoxy Film Electrical Tape Super 20-1″X60YDS
The 3M™ Epoxy Film Electrical Tape Super 20 is a high-quality 5 mil thick electrical tape with excellent dielectric properties. This flame-retardant tape is versatile, serving various applications like coil covering and harnessing. With a 600V rating and a temperature range of 32 to 311 °F (0 to 155 °C), it is a reliable choice for electrical insulation needs.
Danh mục: 3M
