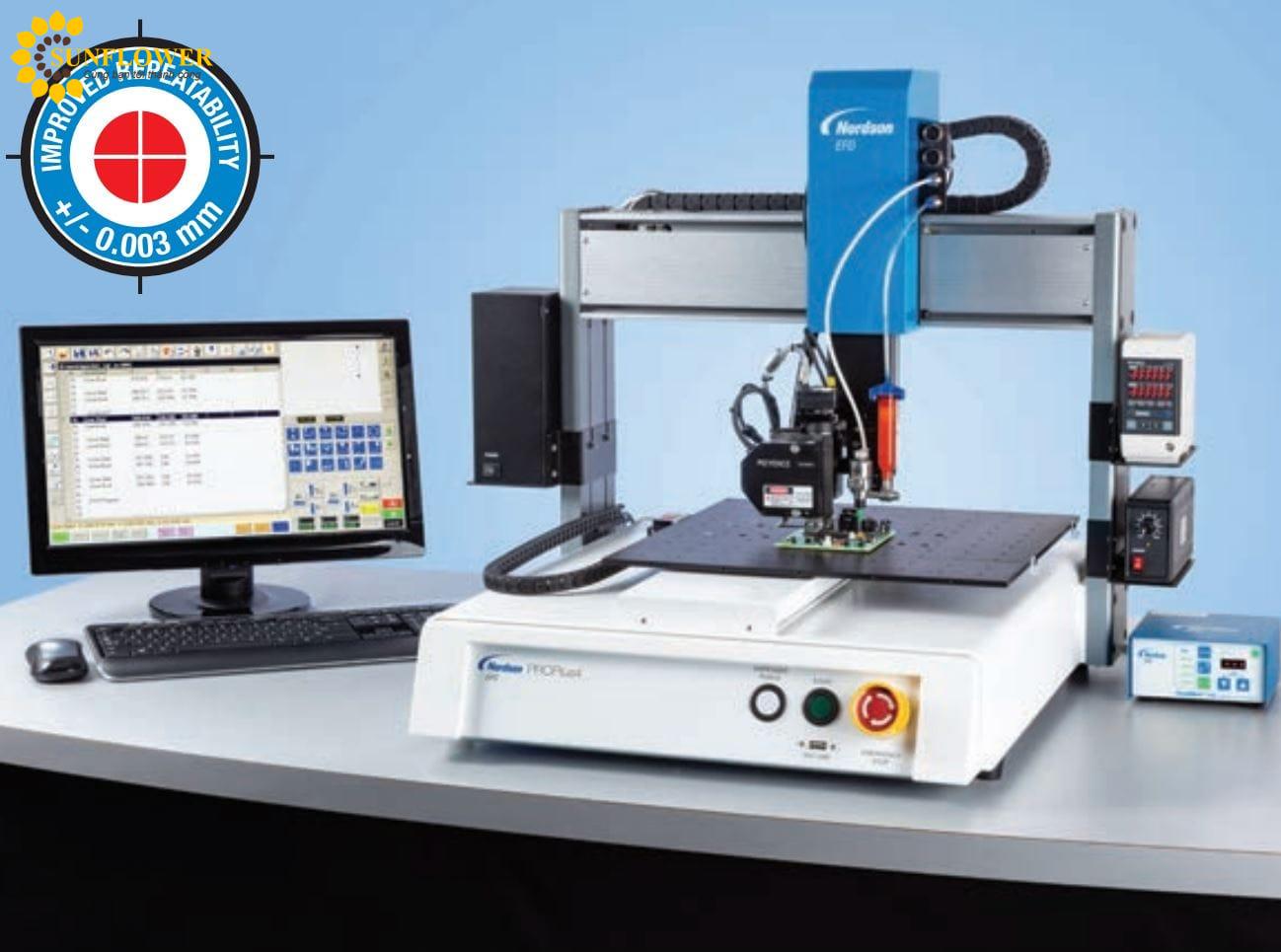

3-Axis PROPlus / PRO Series Automated Fluid Dispensing Robot

Nordson EFD’s vision-guided PROPlus / PRO Series automated systems are specifically designed and configured for precise fiuid dispensing using EFD syringe barrel and valve systems. Specialized DispenseMotion™ software and integrated vision and laser height sensing capabilities make EFD automated systems quick to set up and easy to program. True three-dimensional motion control allows easy programming of dots, lines, circles, arcs, and compound arcs.
Closed-loop encoding, along with the smart vision and laser height sensing capabilities, allows the system to adjust programs automatically to compensate for both surface height changes and variations in product orientation. The PROPlus delivers best-in-class repeatability of +/- 0.003 mm and provides higher dispensing accuracy. Specialized software is designed to optimize the performance of PICO® and Liquidyn® jet valve systems. Fiducial recognition allows for multiple images captures for higher resolution offset.
FEATURES
Dual linear guide, advanced servomotor, and ball screw actuation (PROPlus only)
Simplified setup and programming
On-screen preview and confirmation of the dispensing path
Constant closed-loop feedback
Streamlined file import and conversion
BENEFITS
Best-in-class repeatability and speed (PROPlus +/-0.003 mm; PRO +/- 0.004 mm)
Improved product quality and consistency
Easy integration into existing manufacturing operations
The quicker learning curve for operators, reducing labor costs
Faster speed for higher product output
Reduced production, material, and ownership costs
