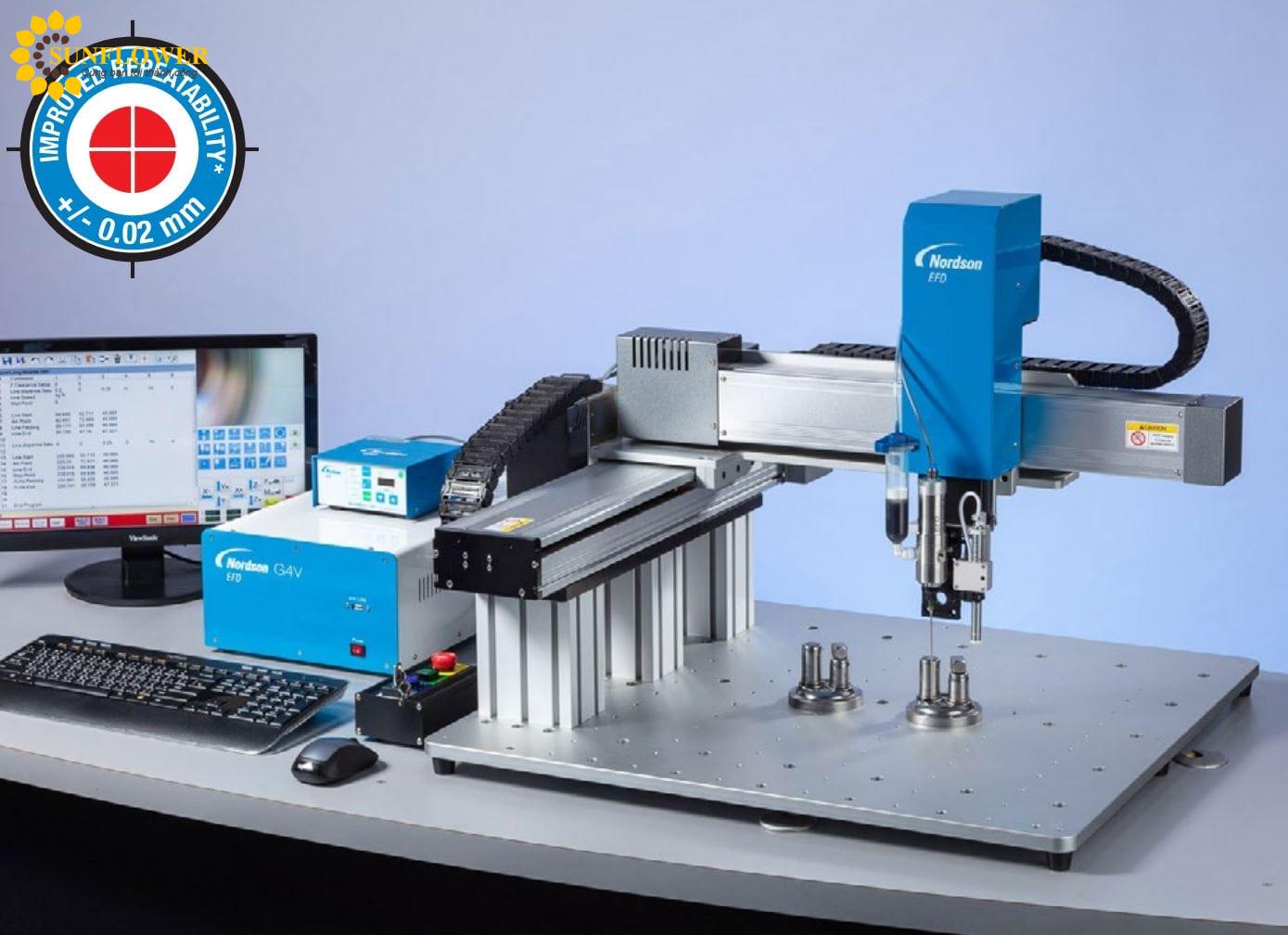

3-Axis GV Series Automated Fluid Dispensing Robot

A complete gantry automation system with a vision for precise fluid application
Nordson EFD’s vision-guided GV Series automated dispensing systems deliver easy automation for precise fluid applications. Specialized DispenseMotion™ software and an integrated CCD smart vision camera or a simple pencil camera make EFD automated systems quick to set up and easy to program. True three-dimensional motion control allows easy programming of dots, lines, circles, arcs, and compound arcs.
Working envelopes range from 400 mm to 800 mm, making them an ideal solution for precise fluid dispensing onto substrates requiring large work envelopes while not sacrificing repeatability.
The GV Series can work as a standalone system or as a key part of an automated solution and is easily integrated into rotary tables and conveyor-fed assembly lines.
FEATURES
Simplified setup and programming with EFD’s advanced vision-guided DispenseMotion software
CCD smart vision camera or simple pencil camera
True, three-dimensional motion control
Work envelopes as large as 800 mm
Unlimited workpiece payload
BENEFITS
Market-leading dimensional positioning accuracy and deposit placement repeatability
Unlimited workpiece payload provides a full range of dispensing application opportunities
Streamlines training of in-house operators
Seamless integration into any manufacturing operation
Reduced production, material, and ownership costs
Ideal for conveyer-fed automation
MODELS
Item/ Model
G4V
G8V
Part #
7363644
7363647
Maximum working area
400 / 400 / 100 mm
(16 / 16 / 4″)
800 / 800 / 100 mm
(31 / 31 / 4″)
