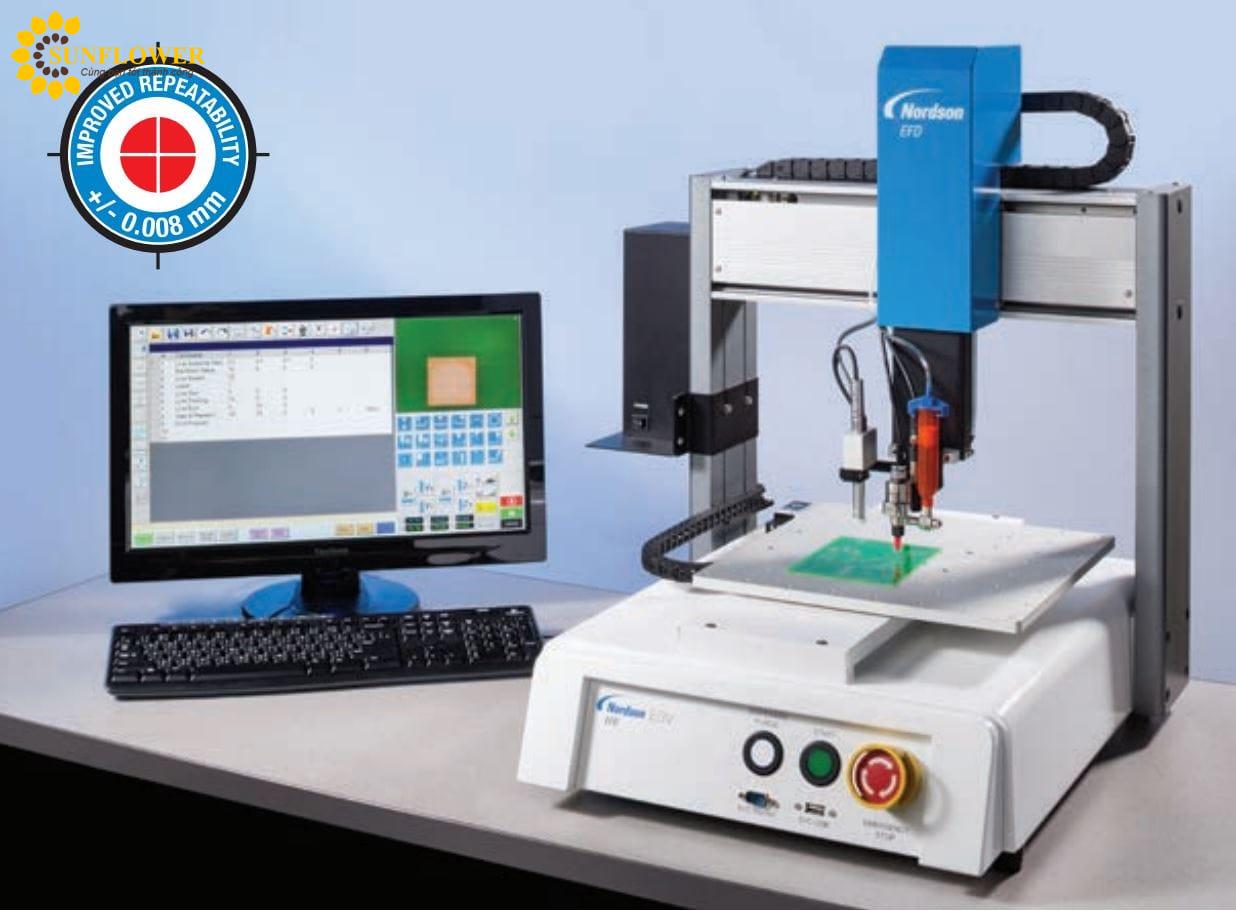

3-Axis EV Series Automated Fluid Dispensing Robot

The EV Series automated fluid dispensing system is a tabletop robot that delivers easy automation for precise fluid applications with proprietary dispensing software and a simple vision pencil camera.
Specialized vision-guided DispenseMotion™ software and pencil camera make the EV Series easy to set up and program. True 3D motion control makes programming dots, lines, circles, arcs, and compound arcs fast and simple.
Get faster cycle and batch times in a system that quickly integrates into any manufacturing operation. With platforms that range from 200 x 200 mm to 500 x 500 mm, the EV Series is ideal for batching or critical dispensing applications.
Verify fluid deposit placement and accuracy with the OptiSure™ automated optical inspection (AOI) software. When paired with the OptiSure confocal laser, the AOI system measures the height of fluid deposits in addition to width and diameter, providing 3D dispense verification.
FEATURES
Easy, intuitive setup and programming
On-screen preview of the dispensing path
Streamlined file import and conversion
True 3D motion control
A wide range of work envelopes
BENEFITS
Faster cycle and batch times
Easy integration into existing production lines
Reduced material, labor, and ownership costs
New manufacturing opportunities
MODELS
Item/ Model
E2V
E3V
E4V
E5V
E6V
Part #
7360856
7360857
7360858
7360859
7362103
Maximum working area
150 / 200 / 50 mm
(6 / 8 / 2″)
250 / 300 / 100 mm
(10 / 12 / 4″)
350 / 400 / 100 mm
(14 / 16 / 4″)
450 / 500 / 150 mm
(18 / 20 / 6″)
570 / 500 / 150 mm
(22 / 20 / 6″)
