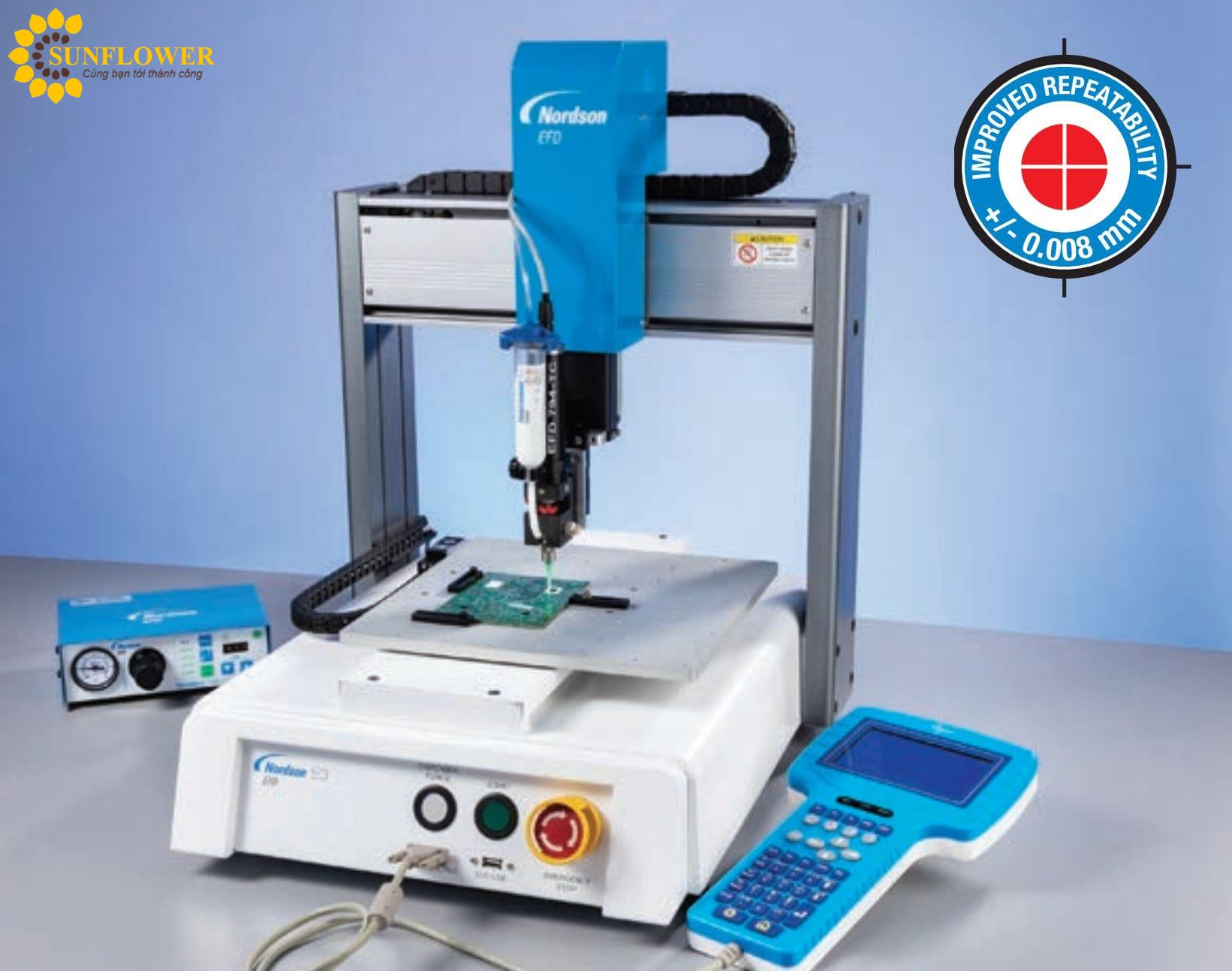

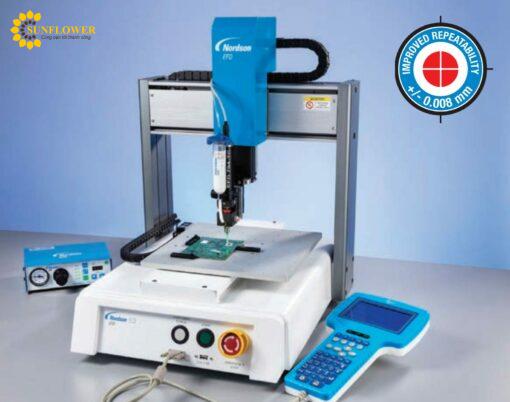

3-Axis E Series Automated Fluid Dispensing Robot

Easy automation for precise fluid application with Teach Pendant programming.
Nordson EFD’s E Series automated systems are configured for precise fluid dispensing using EFD syringe barrel and valve systems. The E Series relies on an easy-to-use Teach Pendant for programming. True three-dimensional motion control allows easy programming of dots, lines, circles, arcs, and compound arcs. Platforms range from 200 x 200 mm to 620 x 500 mm, making them an ideal solution for batching or critical dispensing applications. The E Series can work as a standalone system or as a key part of an automated solution and is easily integrated into in-line transfer systems, rotary tables, and pallet assembly lines.
FEATURES
Simplified setup and programming via Teach
Pendant or file importation
True, three-dimensional motion control
Rugged, reliable construction and small footprint
Wide range of work envelopes
BENEFITS
Faster cycle and batch times
Easy integration into any manufacturing operation
Reduced production, material, and ownership costs
New manufacturing opportunities
MODELS
Item/ Model
E2
E3
E4
E5
E6
Part #
7360852
7360853
7360854
7360855
7362101
Maximum working area
200 / 200 / 50 mm
(8 / 8 / 2″)
300 / 300 / 100 mm
(12 / 12 / 4″)
400 / 400 / 100 mm
(16 / 16 / 4″)
500 / 500 / 150 mm
(20 / 20 / 6″)
620 / 500 / 150 mm
(24 / 20 / 6″)
